ASME BPE Fittings

Concentric Reducer, Clamp Ended (2016 Onwards)

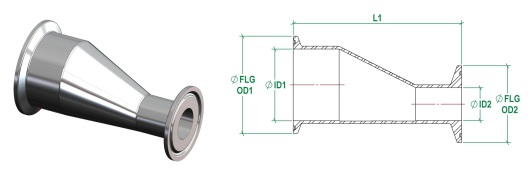

ASME BPE 2016 Fittings, DT-4.1.3-3 (DT21C), Concentric Reducer Clamp Ended

Size (inch)
FLG OD1 X FLG OD2

FLG OD1
(mm)

ID1
(mm)

FLG OD2
(mm)

ID2
(mm)



L1
(mm)

Part Code

1.00" X 0.50"

25.40

22.10

12.70

9.40



88.90

BPE.DT21C.0100.0050.SF1

1.00" X 0.75"

25.40

22.10

19.05

15.75



79.38

BPE.DT21C.0100.0075.SF1

1.50" X 0.75"

38.10

34.80

19.05

15.75



101.60

BPE.DT21C.0150.0075.SF1

1.50" X 1.00"

38.10

34.80

25.40

22.10



88.90

BPE.DT21C.0150.0100.SF1

2.00" X 1.00"

50.80

47.50

25.40

22.10



111.13

BPE.DT21C.0200.0100.SF1

2.00" X 1.50"

50.80

47.50

38.10

34.80



88.90

BPE.DT21C.0200.0150.SF1

2.50" X 1.50"

63.50

60.20

38.10

34.80



111.13

BPE.DT21C.0250.0150.SF1

2.50" X 2.00"

63.50

60.20

50.80

47.50



88.90

BPE.DT21C.0250.0200.SF1

3.00" X 1.50"

76.20

72.90

38.10

34.80



133.35

BPE.DT21C.0300.0150.SF1

3.00" X 2.00"

76.20

72.90

50.80

47.50



111.13

BPE.DT21C.0300.0200.SF1

3.00" X 2.50"

76.20

72.90

63.50

60.20



92.08

BPE.DT21C.0300.0250.SF1

4.00" X 2.00"

101.60

97.38

50.80

47.50



158.75

BPE.DT21C.0400.0200.SF1

4.00" X 2.50"

101.60

97.38

63.50

60.20



136.53

BPE.DT21C.0400.0250.SF1

4.00" X 3.00"

101.60

97.38

76.20

72.90



127.00

BPE.DT21C.0400.0300.SF1

Eccentric Reducer, Clamp Ended (2016 Onwards)

ASME BPE 2016 Fittings, DT-4.1.3-3 (DT21E), Eccentric Reducer Clamp Ended

Size (inch)
FLG OD1 X FLG OD2

FLG OD1
(mm)

ID1
(mm)

FLG OD2
(mm)

ID2
(mm)



L1
(mm)

Part Code

1.00" X 0.50"

25.40

22.10

12.70

9.40



88.90

BPE.DT21E.0100.0050.SF1

1.00" X 0.75"

25.40

22.10

19.05

15.75



79.38

BPE.DT21E.0100.0075.SF1

1.50" X 0.75"

38.10

34.80

19.05

15.75



101.60

BPE.DT21E.0150.0075.SF1

1.50" X 1.00"

38.10

34.80

25.40

22.10



88.90

BPE.DT21E.0150.0100.SF1

2.00" X 1.00"

50.80

47.50

25.40

22.10



111.13

BPE.DT21E.0200.0100.SF1

2.00" X 1.50"

50.80

47.50

38.10

34.80



88.90

BPE.DT21E.0200.0150.SF1

2.50" X 1.50"

63.50

60.20

38.10

34.80



111.13

BPE.DT21E.0250.0150.SF1

2.50" X 2.00"

63.50

60.20

50.80

47.50



88.90

BPE.DT21E.0250.0200.SF1

3.00" X 1.50"

76.20

72.90

38.10

34.80



133.35

BPE.DT21E.0300.0150.SF1

3.00" X 2.00"

76.20

72.90

50.80

47.50



111.13

BPE.DT21E.0300.0200.SF1

3.00" X 2.50"

76.20

72.90

63.50

60.20



92.08

BPE.DT21E.0300.0250.SF1

4.00" X 2.00"

101.60

97.38

50.80

47.50



158.75

BPE.DT21E.0400.0200.SF1

4.00" X 2.50"

101.60

97.38

63.50

60.20



136.53

BPE.DT21E.0400.0250.SF1

4.00" X 3.00"

101.60

97.38

76.20

72.90



127.00

BPE.DT21E.0400.0300.SF1

Note On Overall Length :

ASME BPE 2009 & 2012 Standard Featured Both Short & Long Length Version Reducers, In The Latest ASME BPE 2016 Standard The Short & Long Versions Were Dropped And Replaced With A Standard Length, This 2016 Standard Length Is Not The Same As Either Of The Previous Short or Long Lengths.

Please Check With Our Sales Team Regarding The Length Of The Fitting Being Supplied, As Many Of Our So Called 'Competitors' Are Selling Out Of Date & Standard Length Reducers.

ASME BPE, DT-4.1.3-3 (DT21C), Concentric Reducer, Clamp Ended
Data Sheet-BPE.DT21C.pdf
Adobe Acrobat document [318.1 KB]
ASME BPE, DT-4.1.3-3 (DT21E), Eccentric Reducer, Clamp Ended
Data Sheet-BPE.DT21E.pdf
Adobe Acrobat document [310.5 KB]
