Hygienic Unions

SMS, Swedish Standard

SMS Male

Hygienic Union, SMS, Male

Size

Inch

Dimensions [mm]

Part Code

OD

ID

WT

THD OD

L1

1.00”

25.40

22.10

1.65

40.0

15.0

SMS.M.100

1.50”

38.10

34.80

1.65

60.0

20.0

SMS.M.150

2.00”

50.80

47.50

1.65

70.0

20.0

SMS.M.200

2.50”

63.50

60.20

1.65

85.0

24.0

SMS.M.250

3.00”

76.20

72.90

1.65

98.0

24.0

SMS.M.300

4.00”

101.60

97.38

2.11

132.0

35.0

SMS.M.400

 * 4.00”

101.60

97.38

2.11

140.0

35.0

SMS.M.401

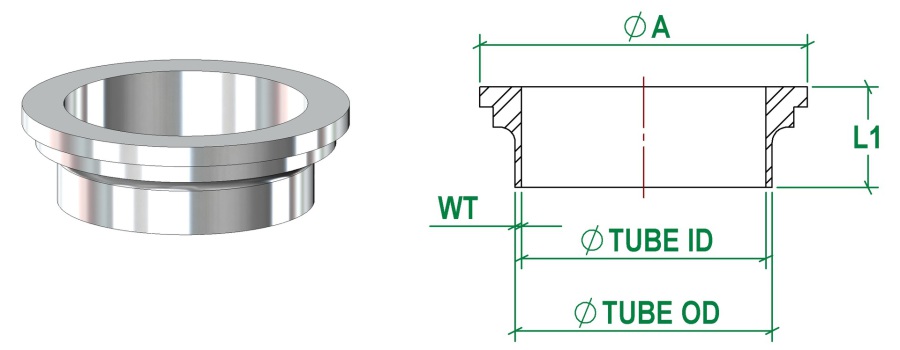

SMS Liner

Hygienic Union, SMS, Weld Liner

Size

Inch

Dimensions [mm]

Part Code

OD

ID

WT

A

L1

1.00”

25.40

22.10

1.65

35.5

7.5

SMS.L.100

1.50”

38.10

34.80

1.65

55.0

9.0

SMS.L.150

2.00”

50.80

47.50

1.65

65.0

9.0

SMS.L.200

2.50”

63.50

60.20

1.65

80.0

9.0

SMS.L.250

3.00”

76.20

72.90

1.65

93.0

10.0

SMS.L.300

4.00”

101.60

97.38

2.11

127.0

12.0

SMS.L.400

SMS Nut

Hygienic Union, SMS, Round Slotted Nut

Size

Inch

Dimensions [mm]

Part Code

OD

THD ID

A

L1



1.00”

51.0

34.0

32.0

20.0



SMS.N.100

1.50”

74.0

54.0

48.0

25.0



SMS.N.150

2.00”

84.0

64.0

60.5

26.0



SMS.N.200

2.50”

100.0

79.0

74.0

30.0



SMS.N.250

3.00”

114.0

92.0

87.0

32.0



SMS.N.300

4.00”

154.0

124.0

117.0

45.0



SMS.N.400

* 4.00”

154.0

132.0

117.0

45.0



SMS.N.401

SMS Seal, Standard

Hygienic Union, SMS, Seal / Gasket (Standard)

Size

Inch

Dimensions [mm]

Part Code

A

B

W





1.00”

32.0

24.8

5.5





SMS.S.100

1.50”

48.0

37.8

5.5





SMS.S.150

2.00”

61.0

50.8

5.5





SMS.S.200

2.50”

73.5

63.2

5.5





SMS.S.250

3.00”

86.0

75.5

5.5





SMS.S.300

4.00”

114.0

101.0

5.5





SMS.S.400

SMS Seal, Lipped Hygienic

Hygienic Union, SMS, Seal / Gasket (Hygienic Lipped)

Size

Inch

Dimensions [mm]

Part Code

A

B

C

W



1.00”

32.0

24.8

22.2

5.5



SMS.SL.100

1.50”

48.0

37.8

34.8

5.5



SMS.SL150

2.00”

61.0

50.8

47.5

5.5



SMS.SL.200

2.50”

73.5

63.2

60.2

5.5



SMS.SL.250

3.00”

86.0

75.5

72.9

5.5



SMS.SL.300

4.00”

114.0

101.0

97.6

5.5



SMS.SL.400

Material

Part

Add Code



Product Specifications

EPDM

O-Ring / Seal

.E



Certification Available

EN10204 3.1

BUNA-N (Nitrile)

O-Ring / Seal

.N



Suits Tube Standard

BS4825-1, SMS3008

Silicone

O-Ring / Seal

.S



Suits Fittings

BS4825-2, SMS3008

VITON

O-Ring / Seal

.V







Hygienic Unions, SMS, Swedish Standard

ePaper
SMS Male, SMS Liner, SMS Nut, SMS Seal, SMS Hygienic Seal

Share:
Hygienic Union, SMS, Complete Range
Hygienic Union, SMS, Complete Range.pdf
Adobe Acrobat document [633.7 KB]
