150lb BSP Screwed Fittings

BSPP Female, Elbow 90 Degree

150lb BSP Screwed Fittings, BSPP Female, Elbow 90°

BSP Size
(inch)

THD ID
(BSP)

THD ID
(mm)

OD
(mm)





L1
(mm)

Part Code

0.125"

1/8"

8.60

13.50



14.00

SFB150.E90.013

0.250"

1/4"

11.90

17.00



19.00

SFB150.E90.025

0.375"

3/8"

15.20

21.50



21.00

SFB150.E90.038

0.500"

1/2"

19.10

25.50



25.50

SFB150.E90.050

0.750"

3/4"

24.60

31.30



28.00

SFB150.E90.075

1.000"

1"

30.70

38.70



33.00

SFB150.E90.100

1.250"

1 1/4"

39.40

48.00



40.00

SFB150.E90.125

1.500"

1 1/2"

45.50

53.70



43.00

SFB150.E90.150

2.000"

2"

57.40

66.70



52.00

SFB150.E90.200

2.500"

2 1/2"

72.60

84.00



61.00

SFB150.E90.250

3.000"

3"

85.40

98.00



71.00

SFB150.E90.300

4.000"

4"

110.60

124.00



89.00

SFB150.E90.400

BSPP Female, Elbow 45 Degree

150lb BSP Screwed Fittings, BSPP Female, Elbow 45°

BSP Size
(inch)

THD ID
(BSP)

THD ID
(mm)

OD
(mm)





L1
(mm)

Part Code

0.125"

1/8"

8.60

16.50



17.70

SFB150.E45.013

0.250"

1/4"

11.90

21.00



18.60

SFB150.E45.025

0.375"

3/8"

15.20

25.00



20.50

SFB150.E45.038

0.500"

1/2"

19.10

29.50



22.50

SFB150.E45.050

0.750"

3/4"

24.60

37.00



25.00

SFB150.E45.075

1.000"

1"

30.70

45.00



28.20

SFB150.E45.100

1.250"

1 1/4"

39.40

54.20



32.20

SFB150.E45.125

1.500"

1 1/2"

45.50

59.00



36.40

SFB150.E45.150

2.000"

2"

57.40

75.00



42.00

SFB150.E45.200

2.500"

2 1/2"

72.60

86.50



47.00

SFB150.E45.250

3.000"

3"

85.40

108.50



52.00

SFB150.E45.300

4.000"

4"

110.60

136.00



63.00

SFB150.E45.400

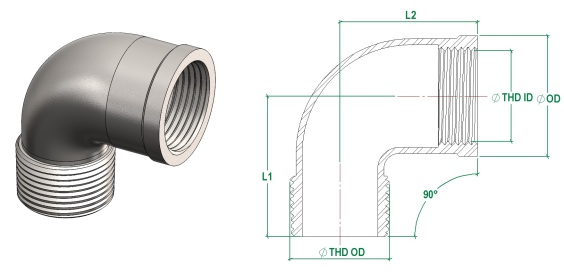

BSPP Female X BSPT Male, Street Elbow 90 Degree

150lb BSP Screwed Fittings, BSPT Male X BSPP Female, Street Elbow 90°

BSP Size
(inch)

THD OD/ID
(BSP)

THD OD
(mm)

THD ID
(mm)

OD
(mm)

L1
(mm)

L2
(mm)

Part Code

0.125"

1/8"

9.50

8.60

13.70

17.00

26.00

SFB150.SE90.013

0.250"

1/4"

12.80

11.90

16.70

19.00

27.00

SFB150.SE90.025

0.375"

3/8"

16.30

15.20

20.70

23.00

29.00

SFB150.SE90.038

0.500"

1/2"

20.40

19.10

25.20

27.00

35.00

SFB150.SE90.050

0.750"

3/4"

25.90

24.60

30.70

32.00

40.00

SFB150.SE90.075

1.000"

1"

32.60

30.70

38.20

38.00

46.00

SFB150.SE90.100

1.250"

1 1/4"

41.10

39.40

47.50

45.00

54.00

SFB150.SE90.125

1.500"

1 1/2"

47.00

45.50

54.00

48.00

57.00

SFB150.SE90.150

2.000"

2"

58.60

57.40

66.50

57.00

70.00

SFB150.SE90.200

2.500"

2 1/2"

74.10

72.60

83.50

69.00

83.00

SFB150.SE90.250

3.000"

3"

86.60

85.40

97.00

78.00

94.00

SFB150.SE90.300

4.000"

4"

112.00

110.60

123.00

97.00

115.00

SFB150.SE90.400
