ASME BPE Fittings

Equal Tee, Weld Ended

ASME BPE 2016 Fittings, DT-4.1.2-1 (DT9), Equal Tee Weld Ended

Size
(inch)

TUBE OD
(mm)

TUBE ID
(mm)

WT
(mm)





L1
(mm)

Part Code

0.500"

12.70

9.40

1.65



47.63

BPE.DT09.0050.SF1

0.750"

19.05

15.75

1.65



50.80

BPE.DT09.0075.SF1

1.000"

25.40

22.10

1.65



53.98

BPE.DT09.0100.SF1

1.500"

38.10

34.80

1.65



60.33

BPE.DT09.0150.SF1

2.000"

50.80

47.50

1.65



73.03

BPE.DT09.0200.SF1

2.500"

63.50

60.20

1.65



79.38

BPE.DT09.0250.SF1

3.000"

76.20

72.90

1.65



85.73

BPE.DT09.0300.SF1

4.000"

101.60

97.38

2.11



104.78

BPE.DT09.0400.SF1

6.000"

152.40

146.86

2.77



142.88

BPE.DT09.0600.SF1

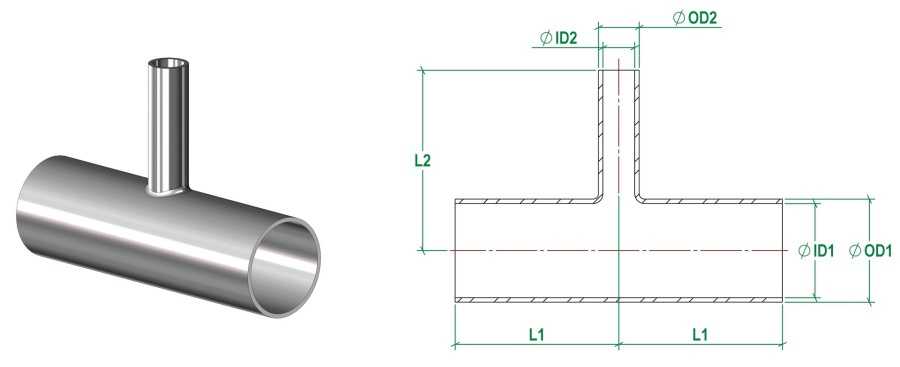

Reducing Tee, Weld Ended

ASME BPE 2016 Fittings, DT-4.1.2-6 (DT10), Reducing Tee Weld Ended

Size (inch)
Main Line X Branch

OD1
(mm)

ID1
(mm)

OD2
(mm)

ID2
(mm)

L1
(mm)

L2
(mm)

Part Code

1.000" X 0.500"

25.40

22.10

12.70

9.40

53.98

53.98

BPE.DT10.0100.0050.SF1

1.000" X 0.750"

25.40

22.10

19.05

15.75

53.98

53.98

BPE.DT10.0100.0075.SF1

1.500" X 0.500"

38.10

34.80

12.70

9.40

60.33

60.33

BPE.DT10.0150.0050.SF1

1.500" X 0.750"

38.10

34.80

19.05

15.75

60.33

60.33

BPE.DT10.0150.0075.SF1

1.500" X 1.000"

38.10

34.80

25.40

22.10

60.33

60.33

BPE.DT10.0150.0100.SF1

2.000" X 0.500"

50.80

47.50

12.70

9.40

73.03

66.68

BPE.DT10.0200.0050.SF1

2.000" X 0.750"

50.80

47.50

19.05

15.75

73.03

66.68

BPE.DT10.0200.0075.SF1

2.000" X 1.000"

50.80

47.50

25.40

22.10

73.03

66.68

BPE.DT10.0200.0100.SF1

2.000" X 1.500"

50.80

47.50

38.10

34.80

73.03

66.68

BPE.DT10.0200.0150.SF1

2.500" X 0.500"

63.50

60.20

12.70

9.40

79.38

73.03

BPE.DT10.0250.0050.SF1

2.500" X 0.750"

63.50

60.20

19.05

15.75

79.38

73.03

BPE.DT10.0250.0075.SF1

2.500" X 1.000"

63.50

60.20

25.40

22.10

79.38

73.03

BPE.DT10.0250.0100.SF1

2.500" X 1.500"

63.50

60.20

38.10

34.80

79.38

73.03

BPE.DT10.0250.0150.SF1

2.500" X 2.000"

63.50

60.20

50.80

47.50

79.38

73.03

BPE.DT10.0250.0200.SF1

3.000" X 1.000"

76.20

72.90

25.40

22.10

85.73

79.38

BPE.DT10.0300.0100.SF1

3.000" X 1.500"

76.20

72.90

38.10

34.80

85.73

79.38

BPE.DT10.0300.0150.SF1

3.000" X 2.000"

76.20

72.90

50.80

47.50

85.73

79.38

BPE.DT10.0300.0200.SF1

3.000" X 2.500"

76.20

72.90

63.50

60.20

85.73

79.38

BPE.DT10.0300.0250.SF1

4.000" X 1.000"

101.60

97.38

25.40

22.10

104.78

92.08

BPE.DT10.0400.0100.SF1

4.000" X 1.500"

101.60

97.38

38.10

34.80

104.78

92.08

BPE.DT10.0400.0150.SF1

4.000" X 2.000"

101.60

97.38

50.80

47.50

104.78

92.08

BPE.DT10.0400.0200.SF1

4.000" X 2.500"

101.60

97.38

63.50

60.20

104.78

92.08

BPE.DT10.0400.0250.SF1

4.000" X 3.000"

101.60

97.38

76.20

72.90

104.78

92.08

BPE.DT10.0400.0300.SF1

ASME BPE, DT-4.1.2-1 (DT9), Equal Tee, Weld Ended
FPFDS-BPE.DT9.pdf
Adobe Acrobat document [267.9 KB]
ASME BPE, DT-4.1.2-6 (DT10), Reducing Tee, Weld Ended
FPFDS-BPE.DT10.pdf
Adobe Acrobat document [281.2 KB]
