Butt Weld Fittings
Equal Tee, Schedule 10 & 40
ANSI B16.9, Butt Weld Equal Tee
|
Butt Weld Fittings, Schedule 10, ASME/ANSI B16.9, Equal Tee |
|||||||
|
NB Size |
PIPE OD |
PIPE ID |
WT |
|
|
L1 |
Part Code |
|
0.50" |
21.3 |
17.1 |
2.1 |
25.4 |
BW.TE.S10.0050 |
||
|
0.75" |
26.7 |
22.5 |
2.1 |
28.7 |
BW.TE.S10.0075 |
||
|
1.00" |
33.4 |
27.9 |
2.8 |
38.1 |
BW.TE.S10.0100 |
||
|
1.25" |
42.2 |
36.6 |
2.8 |
47.8 |
BW.TE.S10.0125 |
||
|
1.50" |
48.3 |
42.7 |
2.8 |
57.2 |
BW.TE.S10.0150 |
||
|
2.00" |
60.3 |
54.8 |
2.8 |
63.5 |
BW.TE.S10.0200 |
||
|
2.50" |
73.0 |
66.9 |
3.1 |
76.2 |
BW.TE.S10.0250 |
||
|
3.00" |
88.9 |
82.8 |
3.1 |
85.9 |
BW.TE.S10.0300 |
||
|
4.00" |
114.3 |
108.2 |
3.1 |
104.9 |
BW.TE.S10.0400 |
||
|
5.00" |
141.3 |
134.5 |
3.4 |
124.0 |
BW.TE.S10.0500 |
||
|
6.00" |
168.3 |
161.5 |
3.4 |
143.0 |
BW.TE.S10.0600 |
||
|
8.00" |
219.1 |
211.6 |
3.8 |
177.8 |
BW.TE.S10.0800 |
||
|
Butt Weld Fittings, Schedule 40, ASME/ANSI B16.9, Equal Tee |
|||||||
|
NB Size |
PIPE OD |
PIPE ID |
WT |
|
|
L1 |
Part Code |
|
0.50" |
21.3 |
15.8 |
2.8 |
25.4 |
BW.TE.S40.0050 |
||
|
0.75" |
26.7 |
20.9 |
2.9 |
28.7 |
BW.TE.S40.0075 |
||
|
1.00" |
33.4 |
26.6 |
3.4 |
38.1 |
BW.TE.S40.0100 |
||
|
1.25" |
42.2 |
35.0 |
3.6 |
47.8 |
BW.TE.S40.0125 |
||
|
1.50" |
48.3 |
40.9 |
3.7 |
57.2 |
BW.TE.S40.0150 |
||
|
2.00" |
60.3 |
52.5 |
3.9 |
63.5 |
BW.TE.S40.0200 |
||
|
2.50" |
73.0 |
62.7 |
5.2 |
76.2 |
BW.TE.S40.0250 |
||
|
3.00" |
88.9 |
77.9 |
5.5 |
85.9 |
BW.TE.S40.0300 |
||
|
4.00" |
114.3 |
102.3 |
6.0 |
104.9 |
BW.TE.S40.0400 |
||
|
5.00" |
141.3 |
128.2 |
6.6 |
124.0 |
BW.TE.S40.0500 |
||
|
6.00" |
168.3 |
154.1 |
7.1 |
143.0 |
BW.TE.S40.0600 |
||
|
8.00" |
219.1 |
202.7 |
8.2 |
177.8 |
BW.TE.S40.0800 |
||
Reducing Tee, Schedule 10 & 40

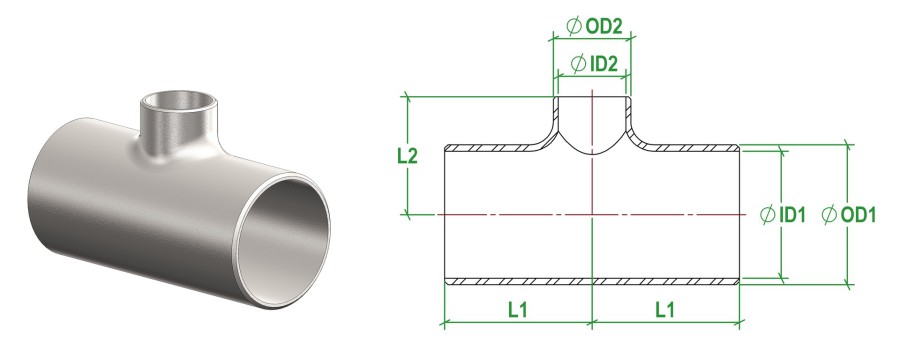

ANSI B16.9, Butt Weld Reducing Tee
|
Butt Weld Fittings, Schedule 10, ASME/ANSI B16.9, Reducing Tee |
|||||||
|
NB Size (inch) |
OD1 |
ID1 |
OD2 |
ID2 |
L1 |
L2 |
Part Code |
|
0.75" X 0.50" |
26.7 |
22.5 |
21.3 |
17.1 |
29.0 |
29.0 |
BW.TR.S10.0075.0050 |
|
1.00" X 0.05" |
33.4 |
27.9 |
21.3 |
17.1 |
38.0 |
38.0 |
BW.TR.S10.0100.0050 |
|
1.00" X 0.75" |
33.4 |
27.9 |
26.7 |
22.5 |
38.0 |
38.0 |
BW.TR.S10.0100.0075 |
|
1.25" X 1.00" |
42.2 |
36.6 |
33.4 |
27.9 |
48.0 |
48.0 |
BW.TR.S10.0125.0100 |
|
1.50" X 0.05" |
48.3 |
42.7 |
21.3 |
17.1 |
57.0 |
57.0 |
BW.TR.S10.0150.0050 |
|
1.50" X 0.75" |
48.3 |
42.7 |
26.7 |
22.5 |
57.0 |
57.0 |
BW.TR.S10.0150.0075 |
|
1.50" X 1.00" |
48.3 |
42.7 |
33.4 |
27.9 |
57.0 |
57.0 |
BW.TR.S10.0150.0100 |
|
1.50" X 1.25" |
48.3 |
42.7 |
42.2 |
36.6 |
57.0 |
57.0 |
BW.TR.S10.0150.0125 |
|
2.00" X 0.50" |
60.3 |
54.8 |
21.3 |
17.1 |
64.0 |
44.0 |
BW.TR.S10.0200.0050 |
|
2.00" X 0.75" |
60.3 |
54.8 |
26.7 |
22.5 |
64.0 |
44.0 |
BW.TR.S10.0200.0075 |
|
2.00" X 1.00" |
60.3 |
54.8 |
33.4 |
27.9 |
64.0 |
51.0 |
BW.TR.S10.0200.0100 |
|
2.00" X 1.25" |
60.3 |
54.8 |
42.2 |
36.6 |
64.0 |
60.0 |
BW.TR.S10.0200.0125 |
|
2.00" X 1.50" |
60.3 |
54.8 |
48.3 |
42.7 |
64.0 |
60.0 |
BW.TR.S10.0200.0150 |
|
2.50" X 1.00" |
73.0 |
66.9 |
33.4 |
27.9 |
76.0 |
57.0 |
BW.TR.S10.0250.0100 |
|
2.50" X 1.20" |
73.0 |
66.9 |
42.2 |
36.6 |
76.0 |
67.0 |
BW.TR.S10.0250.0125 |
|
2.50" X 1.50" |
73.0 |
66.9 |
48.3 |
42.7 |
76.0 |
67.0 |
BW.TR.S10.0250.0150 |
|
2.50" X 2.00" |
73.0 |
66.9 |
60.3 |
54.8 |
76.0 |
70.0 |
BW.TR.S10.0250.0200 |
|
3.00" X 1.00" |
88.9 |
82.8 |
33.4 |
27.9 |
86.0 |
73.0 |
BW.TR.S10.0300.0100 |
|
3.00" X 1.25" |
88.9 |
82.8 |
42.2 |
36.6 |
86.0 |
73.0 |
BW.TR.S10.0300.0125 |
|
3.00" X 1.50" |
88.9 |
82.8 |
48.3 |
42.7 |
86.0 |
73.0 |
BW.TR.S10.0300.0150 |
|
3.00" X 2.00" |
88.9 |
82.8 |
60.3 |
54.8 |
86.0 |
76.0 |
BW.TR.S10.0300.0200 |
|
3.00" X 2.50" |
88.9 |
82.8 |
73.0 |
66.9 |
86.0 |
83.0 |
BW.TR.S10.0300.0250 |
|
4.00" X 1.50" |
114.3 |
108.2 |
48.3 |
42.7 |
105.0 |
86.0 |
BW.TR.S10.0400.0150 |
|
4.00" X 2.00" |
114.3 |
108.2 |
60.3 |
54.8 |
105.0 |
89.0 |
BW.TR.S10.0400.0200 |
|
4.00" X 2.50" |
114.3 |
108.2 |
73.0 |
66.9 |
105.0 |
95.0 |
BW.TR.S10.0400.0250 |
|
4.00" X 3.00" |
114.3 |
108.2 |
88.9 |
82.8 |
105.0 |
98.0 |
BW.TR.S10.0400.0300 |
|
5.00" X 3.00" |
141.3 |
134.5 |
88.9 |
82.8 |
124.0 |
111.0 |
BW.TR.S10.0500.0300 |
|
5.00" X 4.00" |
141.3 |
134.5 |
114.3 |
108.2 |
124.0 |
117.0 |
BW.TR.S10.0500.0400 |
|
6.00" X 3.00" |
168.3 |
161.5 |
88.9 |
82.8 |
143.0 |
124.0 |
BW.TR.S10.0600.0300 |
|
6.00" X 4.00" |
168.3 |
161.5 |
114.3 |
108.2 |
143.0 |
130.0 |
BW.TR.S10.0600.0400 |
|
6.00" X 5.00" |
168.3 |
161.5 |
141.3 |
134.5 |
143.0 |
137.0 |
BW.TR.S10.0600.0500 |
|
8.00" X 4.00" |
219.1 |
211.6 |
114.3 |
108.2 |
178.0 |
156.0 |
BW.TR.S10.0800.0400 |
|
8.00" X 5.00" |
219.1 |
211.6 |
141.3 |
134.5 |
178.0 |
162.0 |
BW.TR.S10.0800.0500 |
|
8.00" X 6.00" |
219.1 |
211.6 |
168.3 |
161.5 |
178.0 |
168.0 |
BW.TR.S10.0800.0600 |
|
Butt Weld Fittings, Schedule 40, ASME/ANSI B16.9, Reducing Tee |
|||||||
|
NB Size (inch) |
OD1 |
ID1 |
OD2 |
ID2 |
L1 |
L2 |
Part Code |
|
0.75" X 0.50" |
26.7 |
20.9 |
21.3 |
15.8 |
29.0 |
29.0 |
BW.TR.S40.0075.0050 |
|
1.00" X 0.50" |
33.4 |
26.6 |
21.3 |
15.8 |
38.0 |
38.0 |
BW.TR.S40.0100.0050 |
|
1.00" X 0.75" |
33.4 |
26.6 |
26.7 |
20.9 |
38.0 |
38.0 |
BW.TR.S40.0100.0075 |
|
1.25" X 1.00" |
42.2 |
35.0 |
33.4 |
26.6 |
48.0 |
48.0 |
BW.TR.S40.0125.0100 |
|
1.50" X 0.50" |
48.3 |
40.9 |
21.3 |
15.8 |
57.0 |
57.0 |
BW.TR.S40.0150.0050 |
|
1.50" X 0.75" |
48.3 |
40.9 |
26.7 |
20.9 |
57.0 |
57.0 |
BW.TR.S40.0150.0075 |
|
1.50" X 1.00" |
48.3 |
40.9 |
33.4 |
26.6 |
57.0 |
57.0 |
BW.TR.S40.0150.0100 |
|
1.50" X 1.25" |
48.3 |
40.9 |
42.2 |
35.0 |
57.0 |
57.0 |
BW.TR.S40.0150.0125 |
|
2.00" X 0.50" |
60.3 |
52.5 |
21.3 |
15.8 |
64.0 |
44.0 |
BW.TR.S40.0200.0050 |
|
2.00" X 0.75" |
60.3 |
52.5 |
26.7 |
20.9 |
64.0 |
44.0 |
BW.TR.S40.0200.0075 |
|
2.00" X 1.00" |
60.3 |
52.5 |
33.4 |
26.6 |
64.0 |
51.0 |
BW.TR.S40.0200.0100 |
|
2.00" X 1.25" |
60.3 |
52.5 |
42.2 |
35.0 |
64.0 |
60.0 |
BW.TR.S40.0200.0125 |
|
2.00" X 1.50" |
60.3 |
52.5 |
48.3 |
40.9 |
64.0 |
60.0 |
BW.TR.S40.0200.0150 |
|
2.50" X 1.00" |
73.0 |
62.7 |
33.4 |
26.6 |
76.0 |
57.0 |
BW.TR.S40.0250.0100 |
|
2.50" X 1.25" |
73.0 |
62.7 |
42.2 |
35.0 |
76.0 |
67.0 |
BW.TR.S40.0250.0125 |
|
2.50" X 1.50" |
73.0 |
62.7 |
48.3 |
40.9 |
76.0 |
67.0 |
BW.TR.S40.0250.0150 |
|
2.50" X 2.00" |
73.0 |
62.7 |
60.3 |
52.5 |
76.0 |
70.0 |
BW.TR.S40.0250.0200 |
|
3.00" X 1.00" |
88.9 |
77.9 |
33.4 |
26.6 |
86.0 |
73.0 |
BW.TR.S40.0300.0100 |
|
3.00" X 1.25" |
88.9 |
77.9 |
42.2 |
35.0 |
86.0 |
73.0 |
BW.TR.S40.0300.0125 |
|
3.00" X 1.50" |
88.9 |
77.9 |
48.3 |
40.9 |
86.0 |
73.0 |
BW.TR.S40.0300.0150 |
|
3.00" X 2.00" |
88.9 |
77.9 |
60.3 |
52.5 |
86.0 |
76.0 |
BW.TR.S40.0300.0200 |
|
3.00" X 2.50" |
88.9 |
77.9 |
73.0 |
62.7 |
86.0 |
83.0 |
BW.TR.S40.0300.0250 |
|
4.00" X 1.50" |
114.3 |
102.3 |
48.3 |
40.9 |
105.0 |
86.0 |
BW.TR.S40.0400.0150 |
|
4.00" X 2.00" |
114.3 |
102.3 |
60.3 |
52.5 |
105.0 |
89.0 |
BW.TR.S40.0400.0200 |
|
4.00" X 2.50" |
114.3 |
102.3 |
73.0 |
62.7 |
105.0 |
95.0 |
BW.TR.S40.0400.0250 |
|
4.00" X 3.00" |
114.3 |
102.3 |
88.9 |
77.9 |
105.0 |
98.0 |
BW.TR.S40.0400.0300 |
|
5.00" X 3.00" |
141.3 |
128.2 |
88.9 |
77.9 |
124.0 |
111.0 |
BW.TR.S40.0500.0300 |
|
5.00" X 4.00" |
141.3 |
128.2 |
114.3 |
102.3 |
124.0 |
117.0 |
BW.TR.S40.0500.0400 |
|
6.00" X 3.00" |
168.3 |
154.1 |
88.9 |
77.9 |
143.0 |
124.0 |
BW.TR.S40.0600.0300 |
|
6.00" X 4.00" |
168.3 |
154.1 |
114.3 |
102.3 |
143.0 |
130.0 |
BW.TR.S40.0600.0400 |
|
6.00" X 5.00" |
168.3 |
154.1 |
141.3 |
128.2 |
143.0 |
137.0 |
BW.TR.S40.0600.0500 |
