Weld Ended Fittings

DIN11865-C, 90 Deg Bends

Weld End Fittings, DIN11865-C, 90° Bend

Size
(inch)

TUBE OD
(mm)

TUBE ID
(mm)

WT
(mm)



R
(mm)

L1
(mm)

Part Code

0.50"

12.70

9.40

1.65



19.05

76.20

W90.DNC.0050.6

0.75"

19.05

15.75

1.65



28.58

76.20

W90.DNC.0075.6

1.00"

25.40

22.10

1.65



38.10

76.20

W90.DNC.0100.6

1.50"

38.10

34.80

1.65



57.15

95.25

W90.DNC.0150.6

2.00"

50.80

47.50

1.65



76.20

120.65

W90.DNC.0200.6

2.50"

63.50

60.20

1.65



95.25

139.70

W90.DNC.0250.6

3.00"

76.20

72.90

1.65



114.30

158.75

W90.DNC.0300.6

4.00"

101.60

97.38

2.11



152.40

203.20

W90.DNC.0400.6

6.00"

152.40

146.86

2.77



228.60

292.10

W90.DNC.0600.6

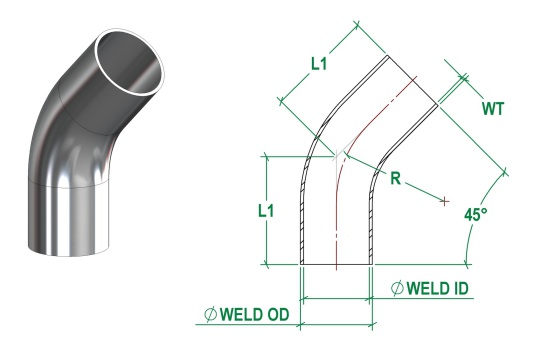

DIN11865-C, 45 Deg Bends

Weld End Fittings, DIN11865-C, 45° Bend

Size
(inch)

TUBE OD
(mm)

TUBE ID
(mm)

WT
(mm)



R
(mm)

L1
(mm)

Part Code

0.50"

12.70

9.40

1.65



19.05

57.15

W45.DNC.0050.6

0.75"

19.05

15.75

1.65



28.58

57.15

W45.DNC.0075.6

1.00"

25.40

22.10

1.65



38.10

57.15

W45.DNC.0100.6

1.50"

38.10

34.80

1.65



57.15

63.50

W45.DNC.0150.6

2.00"

50.80

47.50

1.65



76.20

76.20

W45.DNC.0200.6

2.50"

63.50

60.20

1.65



95.25

85.73

W45.DNC.0250.6

3.00"

76.20

72.90

1.65



114.30

92.08

W45.DNC.0300.6

4.00"

101.60

97.38

2.11



152.40

114.30

W45.DNC.0400.6

6.00"

152.40

146.86

2.77



228.60

158.75

W45.DNC.0600.6

DIN11865-C, Equal Tees

Weld End Fittings, DIN11865-C, Equal Tee

Size
(inch)

TUBE OD
(mm)

TUBE ID
(mm)

WT
(mm)





L1
(mm)

Part Code

0.50"

12.70

9.40

1.65



47.63

WTE.DNC.0050.6

0.75"

19.05

15.75

1.65



50.80

WTE.DNC.0075.6

1.00"

25.40

22.10

1.65



53.98

WTE.DNC.0100.6

1.50"

38.10

34.80

1.65



60.33

WTE.DNC.0150.6

2.00"

50.80

47.50

1.65



73.03

WTE.DNC.0200.6

2.50"

63.50

60.20

1.65



79.38

WTE.DNC.0250.6

3.00"

76.20

72.90

1.65



85.73

WTE.DNC.0300.6

4.00"

101.60

97.38

2.11



104.78

WTE.DNC.0400.6

6.00"

152.40

146.86

2.77



142.88

WTE.DNC.0600.6
