ASME BPE Fittings

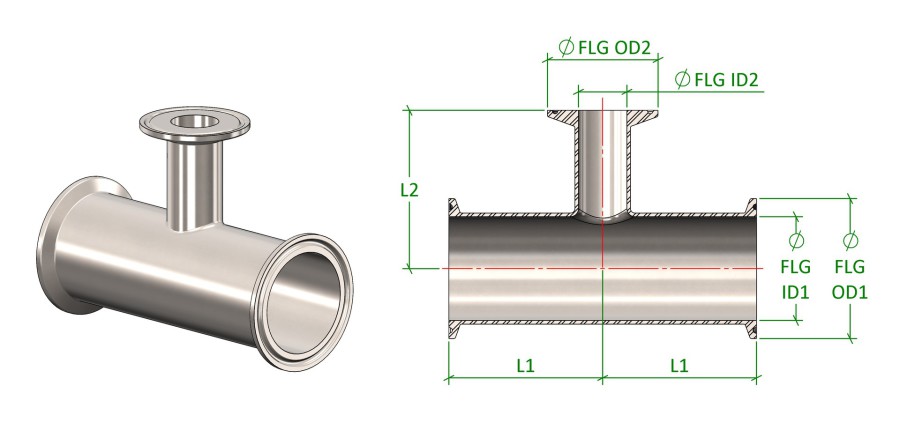

Equal Tee, Clamp Ended
|
ASME BPE 2016 Fittings, DT4.1.2-4 (DT18), Equal Tee Clamp Ended |
|||||||
|
Size |
FLG OD |
FLG ID |
|
|
|
L1 |
Part Code |
|
0.500" |
25.40 |
9.40 |
57.15 |
BPE.DT18.0050.SF1 |
|||
|
0.750" |
25.40 |
15.75 |
60.33 |
BPE.DT18.0075.SF1 |
|||
|
1.000" |
50.50 |
22.10 |
66.68 |
BPE.DT18.0100.SF1 |
|||
|
1.500" |
50.50 |
34.80 |
73.03 |
BPE.DT18.0150.SF1 |
|||
|
2.000" |
64.00 |
47.50 |
85.75 |
BPE.DT18.0200.SF1 |
|||
|
2.500" |
77.50 |
60.20 |
92.08 |
BPE.DT18.0250.SF1 |
|||
|
3.000" |
91.00 |
72.90 |
98.43 |
BPE.DT18.0300.SF1 |
|||
|
4.000" |
119.00 |
97.38 |
120.65 |
BPE.DT18.0400.SF1 |
|||
|
6.000" |
167.00 |
146.86 |
180.98 |
BPE.DT18.0600.SF1 |
|||

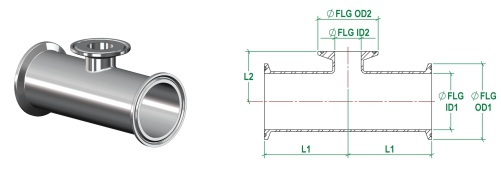

Reducing Tee Short Branch, Clamp Ended
|
ASME BPE 2016 Fittings, DT-4.1.2-9 (DT20), Reducing Tee Short Branch Clamp Ended |
|||||||
|
Size (inch) |
FLG OD1 |
ID1 |
FLG OD2 |
ID2 |
L1 |
L2 |
Part Code |
|
1.000" X 0.500" |
50.50 |
22.10 |
25.40 |
9.40 |
66.68 |
28.58 |
BPE.DT20.0100.0050.SF1 |
|
1.000" X 0.750" |
50.50 |
22.10 |
25.40 |
15.75 |
66.68 |
28.58 |
BPE.DT20.0100.0075.SF1 |
|
1.500" X 0.500" |
50.50 |
34.80 |
25.40 |
9.40 |
73.03 |
34.93 |
BPE.DT20.0150.0050.SF1 |
|
1.500" X 0.750" |
50.50 |
34.80 |
25.40 |
15.75 |
73.03 |
34.93 |
BPE.DT20.0150.0075.SF1 |
|
1.500" X 1.000" |
50.50 |
34.80 |
50.50 |
22.10 |
73.03 |
34.93 |
BPE.DT20.0150.0100.SF1 |
|
2.000" X 0.500" |
64.00 |
47.50 |
25.40 |
9.40 |
85.73 |
41.28 |
BPE.DT20.0200.0050.SF1 |
|
2.000" X 0.750" |
64.00 |
47.50 |
25.40 |
15.75 |
85.73 |
41.28 |
BPE.DT20.0200.0075.SF1 |
|
2.000" X 1.000" |
64.00 |
47.50 |
50.50 |
22.10 |
85.73 |
41.28 |
BPE.DT20.0200.0100.SF1 |
|
2.000" X 1.500" |
64.00 |
47.50 |
50.50 |
34.80 |
85.73 |
41.28 |
BPE.DT20.0200.0150.SF1 |
|
2.500" X 0.500" |
77.50 |
60.20 |
25.40 |
9.40 |
92.08 |
47.63 |
BPE.DT20.0250.0050.SF1 |
|
2.500" X 0.750" |
77.50 |
60.20 |
25.40 |
15.75 |
92.08 |
47.63 |
BPE.DT20.0250.0075.SF1 |
|
2.500" X 1.000" |
77.50 |
60.20 |
50.50 |
22.10 |
92.08 |
47.63 |
BPE.DT20.0250.0100.SF1 |
|
2.500" X 1.500" |
77.50 |
60.20 |
50.50 |
34.80 |
92.08 |
47.63 |
BPE.DT20.0250.0150.SF1 |
|
2.500" X 2.000" |
77.50 |
60.20 |
64.00 |
47.50 |
92.08 |
47.63 |
BPE.DT20.0250.0200.SF1 |
|
3.000" X 1.000" |
91.00 |
72.90 |
50.50 |
22.10 |
98.43 |
53.98 |
BPE.DT20.0300.0100.SF1 |
|
3.000" X 1.500" |
91.00 |
72.90 |
50.50 |
34.80 |
98.43 |
53.98 |
BPE.DT20.0300.0150.SF1 |
|
3.000" X 2.000" |
91.00 |
72.90 |
64.00 |
47.50 |
98.43 |
53.98 |
BPE.DT20.0300.0200.SF1 |
|
3.000" X 2.500" |
91.00 |
72.90 |
77.50 |
60.20 |
98.43 |
53.98 |
BPE.DT20.0300.0250.SF1 |
|
4.000" X 1.000" |
119.00 |
97.38 |
50.50 |
22.10 |
120.65 |
66.68 |
BPE.DT20.0400.0100.SF1 |
|
4.000" X 1.500" |
119.00 |
97.38 |
50.50 |
34.80 |
120.65 |
66.68 |
BPE.DT20.0400.0150.SF1 |
|
4.000" X 2.000" |
119.00 |
97.38 |
64.00 |
47.50 |
120.65 |
66.68 |
BPE.DT20.0400.0200.SF1 |
|
4.000" X 2.500" |
119.00 |
97.38 |
77.50 |
60.20 |
120.65 |
66.68 |
BPE.DT20.0400.0250.SF1 |
|
4.000" X 3.000" |
119.00 |
97.38 |
91.00 |
72.90 |
120.65 |
66.68 |
BPE.DT20.0400.0300.SF1 |
Equal Tee Short Branch, Clamp Ended
|
ASME BPE 2016 Fittings, DT-4.1.2-5 (DT27), Equal Tee Short Branch Clamp Ended |
|||||||
|
Size |
FLG OD |
FLG ID |
|
|
L1 |
L2 |
Part Code |
|
0.500" |
25.40 |
9.40 |
57.15 |
25.40 |
BPE.DT27.0050.SF1 |
||
|
0.750" |
25.40 |
15.75 |
60.33 |
28.58 |
BPE.DT27.0075.SF1 |
||
|
1.000" |
50.50 |
22.10 |
66.68 |
28.58 |
BPE.DT27.0100.SF1 |
||
|
1.500" |
50.50 |
34.80 |
73.03 |
34.93 |
BPE.DT27.0150.SF1 |
||
|
2.000" |
64.00 |
47.50 |
85.75 |
41.28 |
BPE.DT27.0200.SF1 |
||
|
2.500" |
77.50 |
60.20 |
92.08 |
47.63 |
BPE.DT27.0250.SF1 |
||
|
3.000" |
91.00 |
72.90 |
98.43 |
53.98 |
BPE.DT27.0300.SF1 |
||
|
4.000" |
119.00 |
97.38 |
120.65 |
69.85 |
BPE.DT27.0400.SF1 |
||
|
6.000" |
167.00 |
146.86 |
180.98 |
117.48 |
BPE.DT27.0600.SF1 |
||
FPFDS-BPE.DT18.pdf
Adobe Acrobat document [347.3 KB]
FPFDS-BPE.DT20.pdf
Adobe Acrobat document [324.5 KB]
FPFDS-BPE.DT27.pdf
Adobe Acrobat document [301.5 KB]
