Tri-Clamp to BSPP Female

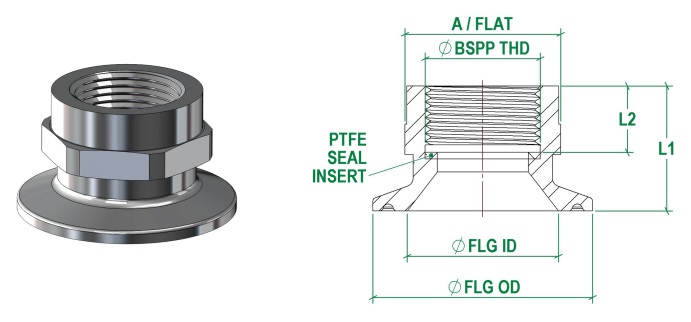

Adapters, TC Ferrule X BSP Female

Size (inch)
TC Ferrule X BSP Female

FLG OD
(mm)

FLG ID
(mm)

THD ID
(G Inch)

A Flat
(mm)

L1
(mm)

L2
(mm)

Part Ordering
Code

0.50" X 0.13"

25.40

9.40

1/8"

18.80

22.10

9.10

A.CFBF.0050.0013.6

0.50" X 0.25"

25.40

9.40

1/4"

21.80

23.10

10.10

A.CFBF.0050.0025.6

0.50" X 0.38"

25.40

9.40

3/8"

26.80

25.50

11.10

A.CFBF.0050.0038.6

0.50" X 0.50"

25.40

9.40

1/2"

29.80

27.90

14.10

A.CFBF.0050.0050.6

0.75" X 0.13"

25.40

15.75

1/8"

18.80

22.10

9.10

A.CFBF.0075.0013.6

0.75" X 0.25"

25.40

15.75

1/4"

21.80

23.10

10.10

A.CFBF.0075.0025.6

0.75" X 0.38"

25.40

15.75

3/8"

26.80

24.10

11.10

A.CFBF.0075.0038.6

0.75" X 0.50"

25.40

15.75

1/2"

29.80

27.90

14.10

A.CFBF.0075.0050.6

0.75" x 0.75"

25.40

15.75

3/4"

35.80

28.80

15.80

A.CFBF.0075.0075.6

1.00" X 0.13"

50.50

22.10

1/8"

18.80

22.10

9.10

A.CFBF.0100.0013.6

1.00" X 0.25"

50.50

22.10

1/4"

21.80

23.10

10.10

A.CFBF.0100.0025.6

1.00" X 0.38"

50.50

22.10

3/8"

26.80

24.10

11.10

A.CFBF.0100.0038.6

1.00" X 0.50"

50.50

22.10

1/2"

29.80

27.90

14.10

A.CFBF.0100.0050.6

1.00" X 0.75"

50.50

22.10

3/4"

35.80

28.80

15.80

A.CFBF.0100.0075.6

1.00" X 1.00"

50.50

22.10

1"

45.60

31.10

18.10

A.CFBF.0100.0100.6

1.50" X 0.13"

50.50

34.80

1/8"

18.80

22.10

9.10

A.CFBF.0150.0013.6

1.50" X 0.25"

50.50

34.80

1/4"

21.80

23.10

10.10

A.CFBF.0150.0025.6

1.50" X 0.38"

50.50

34.80

3/8"

26.80

24.10

11.10

A.CFBF.0150.0038.6

1.50" X 0.50"

50.50

34.80

1/2"

29.80

27.90

14.10

A.CFBF.0150.0050.6

1.50" X 0.75"

50.50

34.80

3/4"

35.80

28.80

15.80

A.CFBF.0150.0075.6

1.50" X 1.00"

50.50

34.80

1"

45.60

31.10

18.10

A.CFBF.0150.0100.6

1.50" X 1.25"

50.50

34.80

1 1/4"

53.80

36.10

19.10

A.CFBF.0150.0125.6

1.50" X 1.50"

50.50

34.80

1 1/2"

59.80

40.80

21.10

A.CFBF.0150.0150.6

2.00" X 0.50"

64.00

47.50

1/2"

29.80

27.90

14.10

A.CFBF.0200.0050.6

2.00" X 0.75"

64.00

47.50

3/4"

35.80

28.80

15.80

A.CFBF.0200.0075.6

2.00" X 1.00"

64.00

47.50

1"

45.60

31.10

18.10

A.CFBF.0200.0100.6

2.00" X 1.25"

64.00

47.50

1 1/4"

53.80

36.10

19.10

A.CFBF.0200.0125.6

2.00" X 1.50"

64.00

47.50

1 1/2"

59.80

39.10

21.10

A.CFBF.0200.0150.6

2.00" X 2.00"

64.00

47.50

2"

73.80

43.40

23.1

A.CFBF.0200.0200.6

2.50" X 1.00"

77.50

60.20

1"

45.60

31.10

18.10

A.CFBF.0250.0100.6

2.50" X 1.25"

77.50

60.20

1 1/4"

53.80

36.10

19.10

A.CFBF.0250.0125.6

2.50" X 1.50"

77.50

60.20

1 1/2"

59.80

39.10

21.10

A.CFBF.0250.0150.6

2.50" X 2.00"

77.50

60.20

2"

73.80

42.10

23.10

A.CFBF.0250.0200.6

2.50" X 2.50"

77.50

60.20

2 1/2"

90.80

48.00

29.00

A.CFBF.0250.0250.6

3.00" X 1.00"

91.00

72.90

1"

45.60

31.10

18.10

A.CFBF.0300.0100.6

3.00" X 1.25"

91.00

72.90

1 1/4"

53.80

36.10

19.10

A.CFBF.0300.0125.6

3.00" X 1.50"

91.00

72.90

1 1/2"

59.80

39.10

21.10

A.CFBF.0300.0150.6

3.00" X 2.00"

91.00

72.90

2"

73.80

42.10

23.10

A.CFBF.0300.0200.6

3.00" X 2.50"

91.00

72.90

2 1/2"

90.80

48.00

29.00

A.CFBF.0300.0250.6

3.00" X 3.00"

91.00

72.90

3"

107.90

51.00

32.00

A.CFBF.0300.0300.6



 Other Sizes Available Upon Request

Adapters, Tri-Clamp Ferrule X BSP Female
Data Sheet-A.CFBF.pdf
Adobe Acrobat document [307.6 KB]
