Adapters
Tri-Clamp to Hosetail
Designed by Engineers for Engineers. Improved Design To Make Your Life a Little Easier & Safer Based on Field Knowledge & First Hand Experiences
|

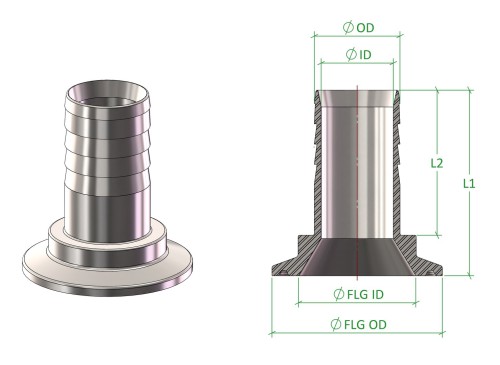

Adapters, TC Ferrule X Hosetail |
|||||||
|
Size (inch) |
FLG OD |
FLG ID |
OD |
ID |
L1 |
L2 |
Part Ordering |
|
0.50" X 0.13" |
25.40 |
9.40 |
3.18 |
1.50 |
37.00 |
25.00 |
A.CFHT.0050.0013.6 |
|
0.50" X 0.25" |
25.40 |
9.40 |
6.35 |
3.35 |
37.00 |
25.00 |
A.CFHT.0050.0025.6 |
|
0.50" X 0.38" |
25.40 |
9.40 |
9.53 |
6.53 |
37.00 |
25.00 |
A.CFHT.0050.0038.6 |
|
0.50" X 0.50" |
25.40 |
9.40 |
12.70 |
9.70 |
50.00 |
38.00 |
A.CFHT.0050.0050.6 |
|
0.75" X 0.13" |
25.40 |
15.75 |
3.18 |
1.50 |
37.00 |
25.00 |
A.CFHT.0075.0013.6 |
|
0.75" X 0.25" |
25.40 |
15.75 |
6.35 |
3.35 |
37.00 |
25.00 |
A.CFHT.0075.0025.6 |
|
0.75" X 0.38" |
25.40 |
15.75 |
9.53 |
6.53 |
37.00 |
25.00 |
A.CFHT.0075.0038.6 |
|
0.75" X 0.50" |
25.40 |
15.75 |
12.70 |
9.70 |
50.00 |
38.00 |
A.CFHT.0075.0050.6 |
|
0.75" x 0.75" |
25.40 |
15.75 |
19.05 |
16.05 |
50.00 |
38.00 |
A.CFHT.0075.0075.6 |
|
1.00" X 0.13" |
50.50 |
22.10 |
3.18 |
1.50 |
37.00 |
25.00 |
A.CFHT.0100.0013.6 |
|
1.00" X 0.25" |
50.50 |
22.10 |
6.35 |
3.35 |
37.00 |
25.00 |
A.CFHT.0100.0025.6 |
|
1.00" X 0.38" |
50.50 |
22.10 |
9.53 |
6.53 |
37.00 |
25.00 |
A.CFHT.0100.0038.6 |
|
1.00" X 0.50" |
50.50 |
22.10 |
12.70 |
9.70 |
50.00 |
38.00 |
A.CFHT.0100.0050.6 |
|
1.00" X 0.75" |
50.50 |
22.10 |
19.05 |
16.05 |
50.00 |
38.00 |
A.CFHT.0100.0075.6 |
|
1.00" X 1.00" |
50.50 |
22.10 |
25.40 |
22.40 |
55.00 |
43.00 |
A.CFHT.0100.0100.6 |
|
1.50" X 0.13" |
50.50 |
34.80 |
3.18 |
1.50 |
37.00 |
25.00 |
A.CFHT.0150.0013.6 |
|
1.50" X 0.25" |
50.50 |
34.80 |
6.35 |
3.35 |
37.00 |
25.00 |
A.CFHT.0150.0025.6 |
|
1.50" X 0.38" |
50.50 |
34.80 |
9.53 |
6.53 |
37.00 |
25.00 |
A.CFHT.0150.0038.6 |
|
1.50" X 0.50" |
50.50 |
34.80 |
12.70 |
9.70 |
50.00 |
38.00 |
A.CFHT.0150.0050.6 |
|
1.50" X 0.75" |
50.50 |
34.80 |
19.05 |
16.05 |
50.00 |
38.00 |
A.CFHT.0150.0075.6 |
|
1.50" X 1.00" |
50.50 |
34.80 |
25.40 |
22.40 |
55.00 |
43.00 |
A.CFHT.0150.0100.6 |
|
1.50" X 1.25" |
50.50 |
34.80 |
31.75 |
28.75 |
55.00 |
43.00 |
A.CFHT.0150.0125.6 |
|
1.50" X 1.50" |
50.50 |
34.80 |
38.10 |
34.80 |
60.00 |
48.00 |
A.CFHT.0150.0150.6 |
|
2.00" X 0.50" |
64.00 |
47.50 |
12.70 |
9.70 |
50.00 |
38.00 |
A.CFHT.0200.0050.6 |
|
2.00" X 0.75" |
64.00 |
47.50 |
19.05 |
16.05 |
50.00 |
38.00 |
A.CFHT.0200.0075.6 |
|
2.00" X 1.00" |
64.00 |
47.50 |
25.40 |
22.40 |
55.00 |
43.00 |
A.CFHT.0200.0100.6 |
|
2.00" X 1.25" |
64.00 |
47.50 |
31.75 |
28.75 |
55.00 |
43.00 |
A.CFHT.0200.0125.6 |
|
2.00" X 1.50" |
64.00 |
47.50 |
38.10 |
34.80 |
55.00 |
48.00 |
A.CFHT.0200.0150.6 |
|
2.00" X 2.00" |
64.00 |
47.50 |
50.80 |
47.50 |
65.00 |
53.00 |
A.CFHT.0200.0200.6 |
|
2.50" X 1.00" |
77.50 |
60.20 |
25.40 |
22.40 |
55.00 |
43.00 |
A.CFHT.0250.0100.6 |
|
2.50" X 1.50" |
77.50 |
60.20 |
38.10 |
34.80 |
60.00 |
48.00 |
A.CFHT.0250.0150.6 |
|
2.50" X 2.00" |
77.50 |
60.20 |
50.80 |
47.50 |
65.00 |
53.00 |
A.CFHT.0250.0200.6 |
|
2.50" X 2.50" |
77.50 |
60.20 |
63.50 |
60.50 |
70.00 |
58.00 |
A.CFHT.0250.0250.6 |
|
3.00" X 1.50" |
91.00 |
72.90 |
38.10 |
34.80 |
70.00 |
48.00 |
A.CFHT.0300.0150.6 |
|
3.00" X 2.00" |
91.00 |
72.90 |
50.80 |
47.50 |
70.00 |
53.00 |
A.CFHT.0300.0200.6 |
|
3.00" X 2.50" |
91.00 |
72.90 |
63.50 |
60.50 |
70.00 |
58.00 |
A.CFHT.0300.0250.6 |
|
3.00" X 3.00" |
91.00 |
72.90 |
76.20 |
73.20 |
72.00 |
58.00 |
A.CFHT.0300.0300.6 |
