Weld Ended Fittings

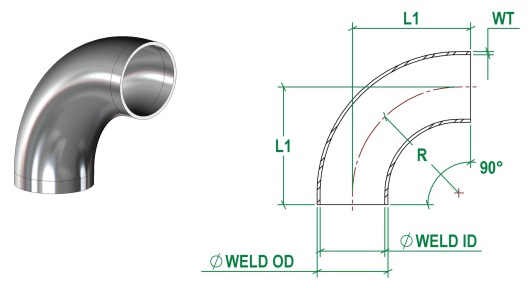

DIN11865-A, 90 Deg Bends Short
|
Weld End Fittings, DIN11865-A, 90° Bend, Short Version |
|||||||
|
Size |
TUBE OD |
TUBE ID |
WT |
|
R |
L1 |
Part Code |
|
DN10 |
13.00 |
10.00 |
1.50 |
26.00 |
26.00 |
W90.DNAS.D010.6P |
|
|
DN15 |
19.00 |
16.00 |
1.50 |
35.00 |
35.00 |
W90.DNAS.D015.6P |
|
|
DN20 |
23.00 |
20.00 |
1.50 |
40.00 |
40.00 |
W90.DNAS.D020.6P |
|
|
DN25 |
29.00 |
26.00 |
1.50 |
50.00 |
50.00 |
W90.DNAS.D025.6P |
|
|
DN32 |
35.00 |
32.00 |
1.50 |
55.00 |
55.00 |
W90.DNAS.D032.6P |
|
|
DN40 |
41.00 |
38.00 |
1.50 |
60.00 |
60.00 |
W90.DNAS.D040.6P |
|
|
DN50 |
53.00 |
50.00 |
1.50 |
70.00 |
70.00 |
W90.DNAS.D050.6P |
|
|
DN65 |
70.00 |
66.00 |
2.00 |
80.00 |
80.00 |
W90.DNAS.D065.6P |
|
|
DN80 |
85.00 |
81.00 |
2.00 |
90.00 |
90.00 |
W90.DNAS.D080.6P |
|
|
DN100 |
104.00 |
100.00 |
2.00 |
100.00 |
100.00 |
W90.DNAS.D100.6P |
|
|
DN125 |
129.00 |
125.00 |
2.00 |
187.50 |
187.50 |
W90.DNAS.D125.6P |
|
|
DN150 |
154.00 |
150.00 |
2.00 |
225.00 |
225.00 |
W90.DNAS.D150.6D |
|
|
DN200 |
204.00 |
200.00 |
2.00 |
300.00 |
300.00 |
W90.DNAS.D200.6D |
|
|
DN250 |
254.00 |
250.00 |
2.00 |
225.00 |
225.00 |
W90.DNAS.D250.6D |
|
|
DN300 |
304.00 |
300.00 |
2.00 |
300.00 |
300.00 |
W90.DNAS.D300.6D |
|
DIN11865-A, 90 Deg Bends Long
|
Weld End Fittings, DIN11865-A, 90° Bend, Long Version |
|||||||
|
Size |
TUBE OD |
TUBE ID |
WT |
|
R |
L1 |
Part Code |
|
DN10 |
13.00 |
10.00 |
1.50 |
26.00 |
38.00 |
W90.DNAL.D010.6P |
|
|
DN15 |
19.00 |
16.00 |
1.50 |
35.00 |
47.00 |
W90.DNAL.D015.6P |
|
|
DN20 |
23.00 |
20.00 |
1.50 |
40.00 |
52.00 |
W90.DNAL.D020.6P |
|
|
DN25 |
29.00 |
26.00 |
1.50 |
50.00 |
70.00 |
W90.DNAL.D025.6P |
|
|
DN32 |
35.00 |
32.00 |
1.50 |
55.00 |
78.00 |
W90.DNAL.D032.6P |
|
|
DN40 |
41.00 |
38.00 |
1.50 |
60.00 |
85.00 |
W90.DNAL.D040.6P |
|
|
DN50 |
53.00 |
50.00 |
1.50 |
70.00 |
97.00 |
W90.DNAL.D050.6P |
|
|
DN65 |
70.00 |
66.00 |
2.00 |
80.00 |
110.00 |
W90.DNAL.D065.6P |
|
|
DN80 |
85.00 |
81.00 |
2.00 |
90.00 |
118.00 |
W90.DNAL.D080.6P |
|
|
DN100 |
104.00 |
100.00 |
2.00 |
100.00 |
140.00 |
W90.DNAL.D100.6P |
|
DIN11865-A, 45 Deg Bends
|
Weld End Fittings, DIN11865-A, 45° Bend |
|||||||
|
Size |
TUBE OD |
TUBE ID |
WT |
|
R |
L1 |
Part Code |
|
DN10 |
13.00 |
10.00 |
1.50 |
26.00 |
25.00 |
W45.DNA.D010.6P |
|
|
DN15 |
19.00 |
16.00 |
1.50 |
35.00 |
30.40 |
W45.DNA.D015.6P |
|
|
DN20 |
23.00 |
20.00 |
1.50 |
40.00 |
35.40 |
W45.DNA.D020.6P |
|
|
DN25 |
29.00 |
26.00 |
1.50 |
50.00 |
44.50 |
W45.DNA.D025.6P |
|
|
DN32 |
35.00 |
32.00 |
1.50 |
55.00 |
50.20 |
W45.DNA.D032.6P |
|
|
DN40 |
41.00 |
38.00 |
1.50 |
60.00 |
55.90 |
W45.DNA.D040.6P |
|
|
DN50 |
53.00 |
50.00 |
1.50 |
70.00 |
67.20 |
W45.DNA.D050.6P |
|
|
DN65 |
70.00 |
66.00 |
2.00 |
80.00 |
80.70 |
W45.DNA.D065.6P |
|
|
DN80 |
85.00 |
81.00 |
2.00 |
90.00 |
93.00 |
W45.DNA.D080.6P |
|
|
DN100 |
104.00 |
100.00 |
2.00 |
100.00 |
106.80 |
W45.DNA.D100.6P |
|
DIN11865-A, Equal Tee
|
Weld End Fittings, DIN11865-A, Equal Tee |
|||||||
|
Size |
TUBE OD |
TUBE ID |
WT |
|
|
L1 |
Part Code |
|
DN10 |
13.00 |
10.00 |
1.50 |
26.00 |
WTE.DNA.D010.6P |
||
|
DN15 |
19.00 |
16.00 |
1.50 |
35.00 |
WTE.DNA.D015.6P |
||
|
DN20 |
23.00 |
20.00 |
1.50 |
40.00 |
WTE.DNA.D020.6P |
||
|
DN25 |
29.00 |
26.00 |
1.50 |
50.00 |
WTE.DNA.D025.6P |
||
|
DN32 |
35.00 |
32.00 |
1.50 |
55.00 |
WTE.DNA.D032.6P |
||
|
DN40 |
41.00 |
38.00 |
1.50 |
60.00 |
WTE.DNA.D040.6P |
||
|
DN50 |
53.00 |
50.00 |
1.50 |
70.00 |
WTE.DNA.D050.6P |
||
|
DN65 |
70.00 |
66.00 |
2.00 |
80.00 |
WTE.DNA.D065.6P |
||
|
DN80 |
85.00 |
81.00 |
2.00 |
90.00 |
WTE.DNA.D080.6P |
||
|
DN100 |
104.00 |
100.00 |
2.00 |
100.00 |
WTE.DNA.D100.6P |
||
|
DN125 |
129.00 |
125.00 |
2.00 |
187.50 |
WTE.DNA.D125.6P |
||
|
DN150 |
154.00 |
150.00 |
2.00 |
225.00 |
WTE.DNA.D150.6D |
||
|
DN200 |
204.00 |
200.00 |
2.00 |
300.00 |
WTE.DNA.D200.6D |
||
DIN11865-A, Pulled Equal Tee
|
Weld End Fittings, DIN11865-A, Equal Pulled Tee |
|||||||
|
Size |
TUBE OD |
TUBE ID |
WT |
|
L1 |
L2 |
Part Code |
|
DN10 |
13.00 |
10.00 |
1.50 |
26.00 |
9.00 |
WTP.DNA.D010.6P |
|
|
DN15 |
19.00 |
16.00 |
1.50 |
35.00 |
11.00 |
WTP.DNA.D015.6P |
|
|
DN20 |
23.00 |
20.00 |
1.50 |
40.00 |
13.00 |
WTP.DNA.D020.6P |
|
|
DN25 |
29.00 |
26.00 |
1.50 |
50.00 |
16.00 |
WTP.DNA.D025.6P |
|
|
DN32 |
35.00 |
32.00 |
1.50 |
55.00 |
19.50 |
WTP.DNA.D032.6P |
|
|
DN40 |
41.00 |
38.00 |
1.50 |
60.00 |
23.00 |
WTP.DNA.D040.6P |
|
|
DN50 |
53.00 |
50.00 |
1.50 |
70.00 |
30.00 |
WTP.DNA.D050.6P |
|
|
DN65 |
70.00 |
66.00 |
2.00 |
80.00 |
40.00 |
WTP.DNA.D065.6P |
|
|
DN80 |
85.00 |
81.00 |
2.00 |
90.00 |
47.50 |
WTP.DNA.D080.6P |
|
|
DN100 |
104.00 |
100.00 |
2.00 |
100.00 |
58.00 |
WTP.DNA.D100.6P |
|
|
DN125 |
129.00 |
125.00 |
2.00 |
187.50 |
74.00 |
WTP.DNA.D125.6P |
|
|
DN150 |
154.00 |
150.00 |
2.00 |
225.00 |
90.00 |
WTP.DNA.D150.6D |
|
|
DN200 |
204.00 |
200.00 |
2.00 |
300.00 |
115.00 |
WTP.DNA.D200.6D |
|

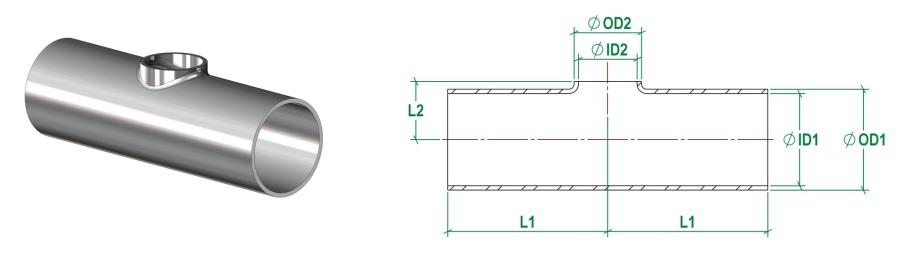

DIN11865-A, Pulled Reducing Tee
|
Weld End Fittings, DIN11865-A, Reducing Tee |
|||||||
|
Size (DN) |
OD1 |
ID1 |
OD2 |
ID2 |
L1 |
L2 |
Part Code |
|
DN25 X DN20 |
29.00 |
26.00 |
23.00 |
20.00 |
50.00 |
17.00 |
WTR.DNA.D025.D020.6P |
|
DN32 X DN25 |
35.00 |
32.00 |
29.00 |
26.00 |
55.00 |
19.50 |
WTR.DNA.D032.D025.6P |
|
DN40 X DN25 |
41.00 |
38.00 |
29.00 |
26.00 |
60.00 |
22.50 |
WTR.DNA.D040.D025.6P |
|
DN40 X DN32 |
41.00 |
38.00 |
35.00 |
32.00 |
60.00 |
22.50 |
WTR.DNA.D040.D032.6P |
|
DN50 X DN25 |
53.00 |
50.00 |
29.00 |
26.00 |
70.00 |
29.50 |
WTR.DNA.D050.D025.6P |
|
DN50 X DN40 |
53.00 |
50.00 |
41.00 |
38.00 |
70.00 |
29.50 |
WTR.DNA.D050.D040.6P |
|
DN65 X DN25 |
70.00 |
66.00 |
29.00 |
26.00 |
80.00 |
39.00 |
WTR.DNA.D065.D025.6P |
|
DN65 X DN40 |
70.00 |
66.00 |
41.00 |
38.00 |
80.00 |
39.00 |
WTR.DNA.D065.D040.6P |
|
DN65 X DN50 |
70.00 |
66.00 |
53.00 |
50.00 |
80.00 |
39.00 |
WTR.DNA.D065.D050.6P |
|
DN80 X DN25 |
85.00 |
81.00 |
29.00 |
26.00 |
90.00 |
46.50 |
WTR.DNA.D080.D025.6P |
|
DN80 X DN40 |
85.00 |
81.00 |
41.00 |
38.00 |
90.00 |
46.50 |
WTR.DNA.D080.D040.6P |
|
DN80 X DN50 |
85.00 |
81.00 |
53.00 |
50.00 |
90.00 |
46.50 |
WTR.DNA.D080.D050.6P |
|
DN80 X DN65 |
85.00 |
81.00 |
70.00 |
66.00 |
90.00 |
46.50 |
WTR.DNA.D080.D065.6P |
|
DN100 X DN25 |
104.00 |
100.00 |
29.00 |
26.00 |
100.00 |
56.00 |
WTR.DNA.D100.D025.6P |
|
DN100 X DN40 |
104.00 |
100.00 |
41.00 |
38.00 |
100.00 |
56.00 |
WTR.DNA.D100.D040.6P |
|
DN100 X DN50 |
104.00 |
100.00 |
53.00 |
50.00 |
100.00 |
56.00 |
WTR.DNA.D100.D050.6P |
|
DN100 X DN65 |
104.00 |
100.00 |
70.00 |
66.00 |
100.00 |
56.00 |
WTR.DNA.D100.D065.6P |
|
DN100 X DN80 |
104.00 |
100.00 |
85.00 |
81.00 |
100.00 |
56.00 |
WTR.DNA.D100.D080.6P |
