Weld Ended Fittings

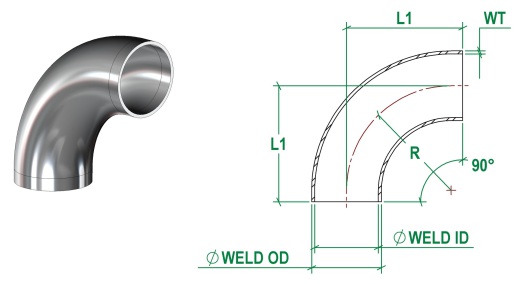

SMS 3008/3017, 90 Deg Bend Short

Weld End Fittings, SMS, 90° Bend Short

Size
(inch)

TUBE OD
(mm)

TUBE ID
(mm)

WT
(mm)



R
(mm)

L1
(mm)

Part Code

1.00"

25.00

22.60

1.20



37.00

37.00

W90.SMSS.0100.6P

1.50"

38.00

35.60

1.20



52.00

52.00

W90.SMSS.0150.6P

2.00"

51.00

48.60

1.20



75.00

75.00

W90.SMSS.0200.6P

2.50"

63.50

60.30

1.60



90.00

90.00

W90.SMSS.0250.6P

3.00"

76.10

72.90

1.60



95.00

95.00

W90.SMSS.0300.6P

4.00"

101.60

97.60

2.00



150.00

150.00

W90.SMSS.0400.6P

SMS 3008/3017, 90 Deg Bend Long

Weld End Fittings, SMS, 90° Bend Long

Size
(inch)

TUBE OD
(mm)

TUBE ID
(mm)

WT
(mm)



R
(mm)

L1
(mm)

Part Code

1.00"

25.00

22.60

1.20



25.00

55.00

W90.SMSL.0100.6P

1.50"

38.00

35.60

1.20



38.00

70.00

W90.SMSL.0150.6P

2.00"

51.00

48.60

1.20



51.00

82.00

W90.SMSL.0200.6P

2.50"

63.50

60.30

1.60



63.50

105.00

W90.SMSL.0250.6P

3.00"

76.10

72.90

1.60



76.10

110.00

W90.SMSL.0300.6P

SMS 3008/3017, 45 Deg Bend Long

Weld End Fittings, SMS, 45° Bend

Size
(inch)

TUBE OD
(mm)

TUBE ID
(mm)

WT
(mm)



R
(mm)

L1
(mm)

Part Code

1.00"

25.00

22.60

1.20



25.00

TBC

W45.SMS.0100.6P

1.50"

38.00

35.60

1.20



38.00

TBC

W45.SMS.0150.6P

2.00"

51.00

48.60

1.20



51.00

TBC

W45.SMS.0200.6P

2.50"

63.50

60.30

1.60



64.00

TBC

W45.SMS.0250.6P

3.00"

76.10

72.90

1.60



76.00

TBC

W45.SMS.0300.6P

4.00"

101.60

97.60

2.00



150.00

TBC

W45.SMS.0400.6P

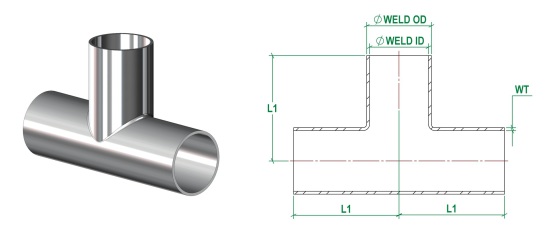

SMS 3008/3017, Equal Tees

Weld End Fittings, SMS, Equal Tee

Size
(inch)

TUBE OD
(mm)

TUBE ID
(mm)

WT
(mm)





L1
(mm)

Part Code

1.00"

25.00

22.60

1.20



55.00

WTE.SMS.0100.6P

1.50"

38.00

35.60

1.20



70.00

WTE.SMS.0150.6P

2.00"

51.00

48.60

1.20



82.00

WTE.SMS.0200.6P

2.50"

63.50

60.30

1.60



105.00

WTE.SMS.0250.6P

3.00"

76.10

72.90

1.60



110.00

WTE.SMS.0300.6P

4.00"

101.60

97.60

2.00



150.00

WTE.SMS.0400.6P
