Adapters

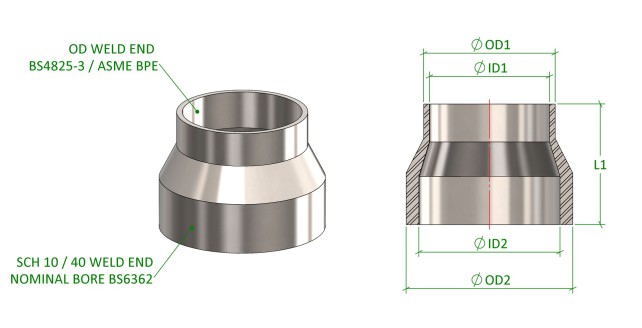

OD Tube Weld End X Schedule 10 Pipe Weld End
|
Adapters, OD Weld End X Schedule 10 Weld End |
|||||||
|
Size (inch) |
OD1 |
ID1 |
OD2 |
ID2 |
|
L |
Part Ordering |
|
0.50" X 0.50'' |
12.7 |
9.4 |
21.3 |
17.1 |
|
35 |
A.WEWE.OD-S10.0050.0050.6 |
|
0.75" X 0.75'' |
19.1 |
15.8 |
26.7 |
22.5 |
|
35 |
A.WEWE.OD-S10.0075.0075.6 |
|
1.00" X 1.00'' |
25.4 |
22.1 |
33.4 |
27.9 |
|
35 |
A.WEWE.OD-S10.0100.0100.6 |
|
1.50" X 1.50'' |
38.1 |
34.8 |
48.3 |
42.7 |
|
35 |
A.WEWE.OD-S10.0150.0150.6 |
|
2.00" X 2.00'' |
50.8 |
47.5 |
60.3 |
54.8 |
|
35 |
A.WEWE.OD-S10.0200.0200.6 |
|
2.50" X 2.50'' |
63.5 |
60.2 |
73.0 |
66.9 |
|
35 |
A.WEWE.OD-S10.0250.0250.6 |
|
3.00" X 3.00'' |
76.2 |
72.9 |
88.9 |
82.8 |
|
35 |
A.WEWE.OD-S10.0300.0300.6 |
|
4.00" X 4.00'' |
101.6 |
97.4 |
114.3 |
108.2 |
|
35 |
A.WEWE.OD-S10.0400.0400.6 |
OD Tube Weld End X Schedule 40 Pipe Weld End
|
Adapters, OD Weld End X Schedule 40 Weld End |
|||||||
|
Size (inch) |
OD1 |
ID1 |
OD2 |
ID2 |
|
L |
Part Ordering |
|
0.50" X 0.50'' |
12.7 |
9.4 |
21.3 |
15.8 |
|
35 |
A.WEWE.OD-S40.0050.0050.6 |
|
0.75" X 0.75'' |
19.1 |
15.8 |
26.7 |
20.9 |
|
35 |
A.WEWE.OD-S40.0075.0075.6 |
|
1.00" X 1.00'' |
25.4 |
22.1 |
33.4 |
26.7 |
|
35 |
A.WEWE.OD-S40.0100.0100.6 |
|
1.50" X 1.50'' |
38.1 |
34.8 |
48.3 |
40.9 |
|
35 |
A.WEWE.OD-S40.0150.0150.6 |
|
2.00" X 2.00'' |
50.8 |
47.5 |
60.3 |
52.5 |
|
35 |
A.WEWE.OD-S40.0200.0200.6 |
|
2.50" X 2.50'' |
63.5 |
60.2 |
73.0 |
62.7 |
|
35 |
A.WEWE.OD-S40.0250.0250.6 |
|
3.00" X 3.00'' |
76.2 |
72.9 |
88.9 |
77.9 |
|
35 |
A.WEWE.OD-S40.0300.0300.6 |
|
4.00" X 4.00'' |
101.6 |
97.4 |
114.3 |
102.3 |
|
35 |
A.WEWE.OD-S40.0400.0400.6 |
