Strainers / Filters

Inline Body & Filter Elment, TC Connection

Filter / Strainer, Inline Type, TC Connections, Body Only

TC Connection Size
(inch)

Inlet ID
(mm)

Outlet ID
(mm)







A
(mm)

Part Code

1.500"

34.8

34.8





244.0

FIL.IL.TC.150

2.000"

47.5

47.5





294.0

FIL.IL.TC.200

2.500"

60.2

60.2





344.0

FIL.IL.TC.250

3.000"

72.9

72.9





394.0

FIL.IL.TC.300

*Clamp & EPDM Seal are supplied with Body as standard.

**Other Port Connections Available By Using A Clamp Ended Reducer.  Please Contact Us For More Details

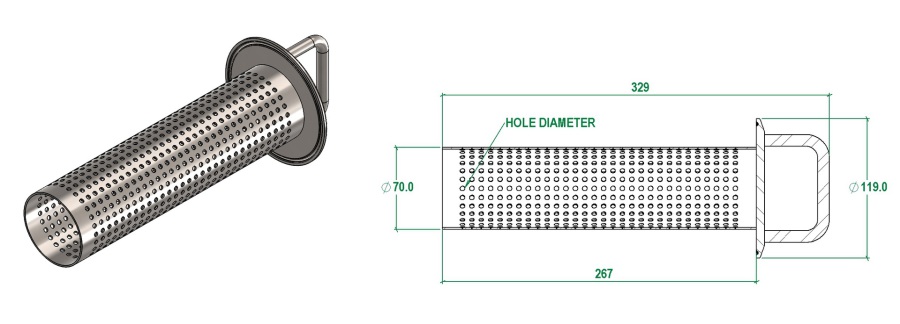

Filter Element

Filter / Strainer, Perforated Element Only

Hole Diameter
mm (micron)

Filtration Area (mm²)

Open Area
(%)





Max Inlet Pressure (bar)

 Max Delta P (bar)

Part Code

2.0 (2000u)

53,900

8.7



16.0

4.0

FIL.ELE.2000

3.0 (3000u)

53,900

11.0



16.0

4.0

FIL.ELE.3000

4.0 (4000u)

53,900

19.5



16.0

4.0

FIL.ELE.4000

6.0 (6000u)

53,900

19.5



16.0

4.0

FIL.ELE.6000

8.0 (8000u)

53,900

27.8



16.0

4.0

FIL.ELE.8000

Filter / Strainer, Inline Type
FPF Data Sheet, Filter Strainer, Inline [...]
Adobe Acrobat document [268.0 KB]

Buy These Strainers, Securely, Quickly & Easily Via Our Online Shop
