150lb BSP Screwed Fittings

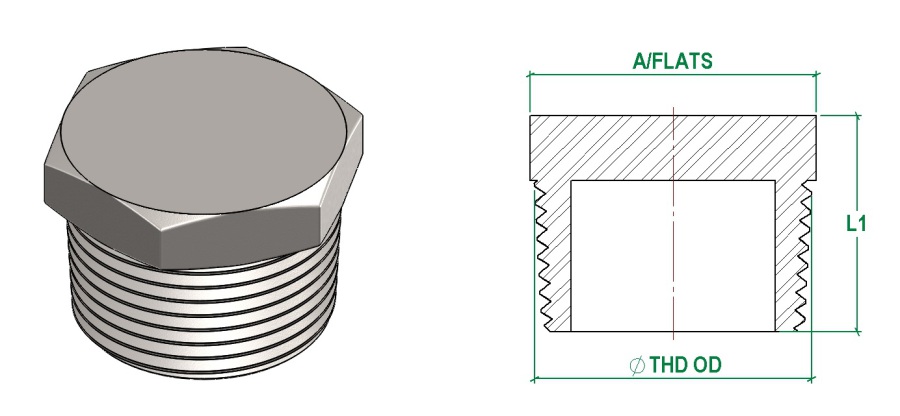

BSPT Male, Hexagon Plug

150lb BSP Screwed Fittings, BSPP Male, Hexagon Plug

BSP Size
(inch)

THD OD
(BSP)

THD OD
(mm)

A/FLATS
(mm)





L1
(mm)

Part Code

0.125"

1/8"

9.50

16.80



17.70

SFB150.HP.013

0.250"

1/4"

12.80

16.80



17.70

SFB150.HP.025

0.375"

3/8"

16.30

18.00



18.50

SFB150.HP.038

0.500"

1/2"

20.40

22.00



19.50

SFB150.HP.050

0.750"

3/4"

25.90

28.00



22.00

SFB150.HP.075

1.000"

1"

32.60

35.00



24.80

SFB150.HP.100

1.250"

1 1/4"

41.10

44.00



28.80

SFB150.HP.125

1.500"

1 1/2"

47.00

50.00



28.80

SFB150.HP.150

2.000"

2"

58.60

62.00



33.50

SFB150.HP.200

2.500"

2 1/2"

74.10

78.00



34.00

SFB150.HP.250

3.000"

3"

86.60

91.00



37.50

SFB150.HP.300

4.000"

4"

112.00

116.00



44.00

SFB150.HP.400

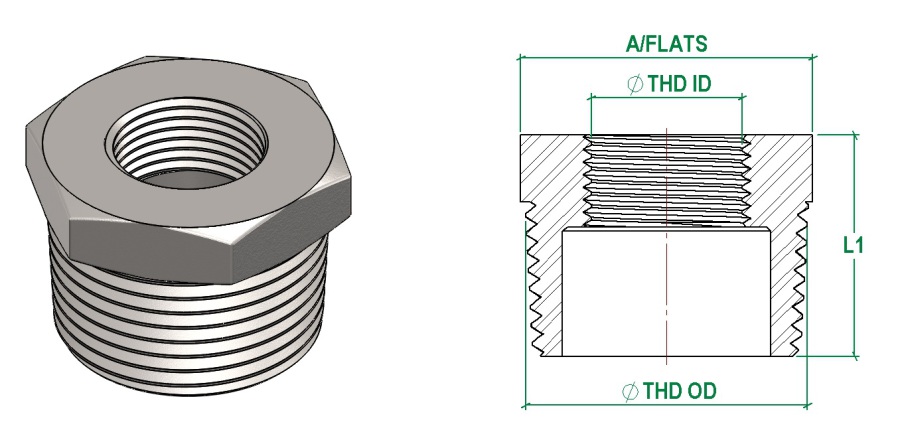

BSPT Male X BSPP Female, Reducing Bush

150lb BSP Screwed Fittings, BSPT Male, Reducing Bush

Size Inch
BSPT Male X BSPP Female

THD OD
(BSPT)

THD OD
(mm)

THD ID
(BSPP)

THD ID
(mm)

A/FLATS
(mm)

L1
(mm)

Part Code

0.250" X 0.125"

1/4"

12.80

1/8"

8.60

14.50

14.50

SBF150.RB.025.013

0.375" X 0.125"

3/8"

16.30

1/8"

8.60

18.00

16.00

SBF150.RB.038.013

0.375" X 0.250"

3/8"

16.30

1/4"

11.90

18.00

16.00

SBF150.RB.038.025

0.500" X 0.125"

1/2"

20.40

1/8"

8.60

21.40

19.50

SBF150.RB.050.013

0.500" X 0.250"

1/2"

20.40

1/4"

11.90

21.40

19.50

SBF150.RB.050.025

0.500" X 0.375"

1/2"

20.40

3/8"

15.20

21.40

19.50

SBF150.RB.050.038

0.750" X 0.250"

3/4"

25.90

1/4"

11.90

27.00

21.00

SBF150.RB.075.025

0.750" X 0.375"

3/4"

25.90

3/8"

15.20

27.00

21.00

SBF150.RB.075.038

0.750" X 0.500"

3/4"

25.90

1/2"

19.10

27.00

21.00

SBF150.RB.075.050

1.000" X 0.250"

1"

32.60

1/4"

11.90

33.90

24.00

SBF150.RB.100.025

1.000" X 0.375"

1"

32.60

3/8"

15.20

33.90

24.00

SBF150.RB.100.038

1.000" X 0.500"

1"

32.60

1/2"

19.10

33.90

27.00

SBF150.RB.100.050

1.000" X 0.750"

1"

32.60

3/4"

24.60

33.90

27.00

SBF150.RB.100.075

1.250" X 0.375"

1 1/4"

41.10

3/8"

15.20

42.70

27.00

SBF150.RB.125.038

1.250" X 0.500"

1 1/4"

41.10

1/2"

19.10

42.70

27.00

SBF150.RB.125.050

1.250" X 0.750"

1 1/4"

41.10

3/4"

24.60

42.70

27.00

SBF150.RB.125.075

1.250" X 1.000"

1 1/4"

41.10

1"

30.70

42.70

27.00

SBF150.RB.125.100

1.500" X 0.375"

1 1/2"

47.00

3/8"

15.20

48.60

27.00

SBF150.RB.150.038

1.500" X 0.500"

1 1/2"

47.00

1/2"

19.10

48.60

27.00

SBF150.RB.150.050

1.500" X 0.750"

1 1/2"

47.00

3/4"

24.60

48.60

27.00

SBF150.RB.150.075

1.500" X 1.000"

1 1/2"

47.00

1"

30.70

48.60

27.00

SBF150.RB.150.100

1.500" X 1.250"

1 1/2"

47.00

1 1/4"

39.40

48.60

27.00

SBF150.RB.150.125

2.000" X 0.500"

2"

58.60

1/2"

19.10

60.50

31.00

SBF150.RB.200.050

2.000" X 0.750"

2"

58.60

3/4"

24.60

60.50

31.00

SBF150.RB.200.075

2.000" X 1.000"

2"

58.60

1"

30.70

60.50

31.00

SBF150.RB.200.100

2.000" X 1.250"

2"

58.60

1 1/4"

39.40

60.50

31.00

SBF150.RB.200.125

2.000" X 1.500"

2"

58.60

1 1/2"

45.50

60.50

31.00

SBF150.RB.200.150

2.500" X 0.750"

2 1/2"

74.10

3/4"

24.60

78.00

34.00

SBF150.RB.250.075

2.500" X 1.000"

2 1/2"

74.10

1"

30.70

78.00

34.00

SBF150.RB.250.100

2.500" X 1.250"

2 1/2"

74.10

1 1/4"

39.40

78.00

34.00

SBF150.RB.250.125

2.500" X 1.500"

2 1/2"

74.10

1 1/2"

45.50

78.00

34.00

SBF150.RB.250.150

2.500" X 2.000"

2 1/2"

74.10

2"

57.40

78.00

34.00

SBF150.RB.250.200

3.000" X 1.000"

3"

86.60

1"

30.70

91.00

38.00

SBF150.RB.300.100

3.000" X 1.250"

3"

86.60

1 1/4"

39.40

91.00

38.00

SBF150.RB.300.125

3.000" X 1.500"

3"

86.60

1 1/2"

45.50

91.00

38.00

SBF150.RB.300.150

3.000" X 2.000"

3"

86.60

2"

57.40

91.00

38.00

SBF150.RB.300.200

3.000" X 2.500"

3"

86.60

2 1/2"

72.60

91.00

38.00

SBF150.RB.300.250

4.000" X 1.500"

4"

112.00

1 1/2"

45.50

116.00

44.00

SBF150.RB.400.150

4.000" X 2.000"

4"

112.00

2"

57.40

116.00

44.00

SBF150.RB.400.200

4.000" X 2.500"

4"

112.00

2 1/2"

72.60

116.00

44.00

SBF150.RB.400.250

4.000" X 3.000"

4"

112.00

3"

85.40

116.00

44.00

SBF150.RB.400.300
